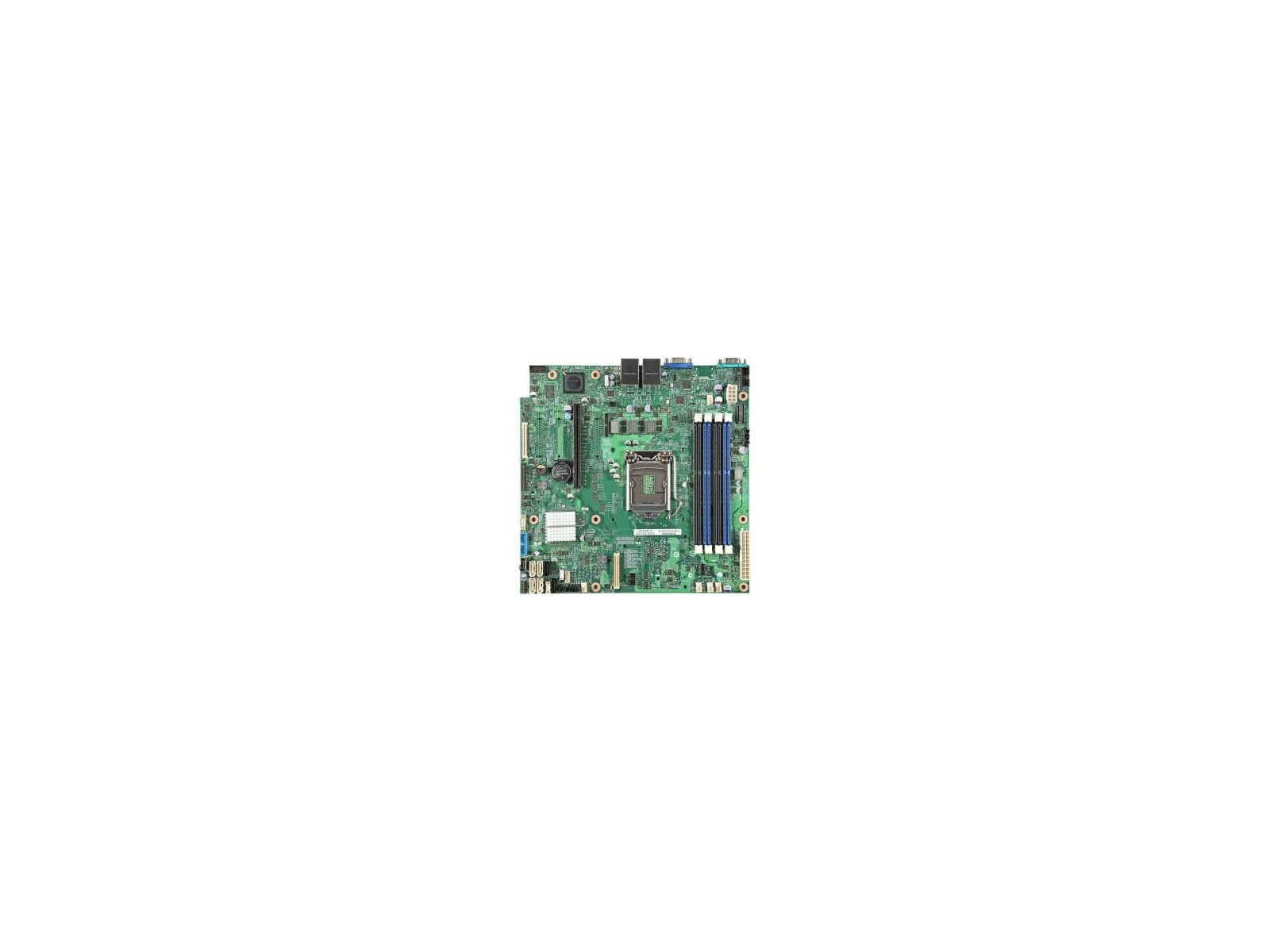

BBS1200V3RPS Intel Motherboard Intel? C222 Lga 1150 (Socket H3) Micro Atx









Una scheda base a un socket con chipset Intel® C222 che supporta una famiglia di processori Intel® Xeon® E3-1200 4 UDIMM fino a 1600 MHz e un doppio controller Ethernet Intel® integrato. La grafica integrata consente un'incredibile qualit? visiva prestazioni grafiche pi? rapide e opzioni di visualizzazione flessibili senza la necessit? di una scheda grafica separata. Nuove istruzioni AES Le nuove istruzioni AES-NI (Advanced Encryption Standard New Instructions) sono un set di istruzioni che consentono la crittografia e la decrittografia dei dati rapide e sicure. Le AES-NI sono preziose per un'ampia gamma di applicazioni crittografiche ad esempio: applicazioni che eseguono crittografia/decrittografia in blocco anti-autenticazione generazione di numeri casuali e crittografia autenticata.









Battery Battery Type UN3091 - Lithium METAL inside equiment Lithium Weight (g) 0,064 g Expansion slots PCI Express slots version 3.0 PCI Express x1 (Gen 2.x) slots 1 PCI Express x4 (Gen 2.x) slots 1 PCI Express x8 (Gen 2.x) slots 1 PCI Express x8 (Gen 3.x) slots 1 Caratteristiche Component for Server Embedded USB (eUSB) SSD option Yes Market segment Server Motherboard chipset Intel? C222 Motherboard form factor micro ATX Physical Address Extension (PAE) 40 bit Rack-Friendly board Yes Graphics Discrete graphics support Yes On-board graphics card Yes Parallel processing technology support Not supported Internal I/O Number of SATA connectors 6 Total number of SATA connectors 6 Legal Information UNSPSC Code (Icecat) 43201513 Logistics data Harmonized System (HS) code 8473301180 Memory ECC Yes ECC ?ompatibility ECC Maximum internal memory 32 GB Memory bandwidth (max) 25,6 GB/s Memory channels Dual-channel Supported memory clock speeds 1333/1600 MHz Supported memory types DDR3L-SDRAM Unbuffered memory Yes Network Ethernet interface type Gigabit Ethernet Ethernet LAN Yes Wi-Fi No Other Caratteristiche Chassis type Tower Commodity Classification Automated Tracking System (CCATS) G145323 CPU configuration (max) 1 Discrete graphics card model Supported Embedded options available No Export Control Classification Number (ECCN) 5A992C Graphics output VGA Intel Node Manager Yes Maximum UDIMM memory 32 GB Motherboard ARK ID 71385 Number of DIMM slots 4 Number of processors supported 1 Packaging content (1) Intel Server Board S1200V3RPS with (4) SATA Cables (1) I/O Shield (1) Intel Server Deployment & Management DVD (1) Attention document and (1) Quick Start User?s Guide. PCI Express CEM revision 3.0 PCI Express slots quantity 16 PCI Express x8 (Gen 2.x) slots 1 PCI Express x8 (Gen 3.x) slots 1 Thermal Design Power (TDP) 95 Watt Package dimensions Gross Weight (Package kg) 1,3 kg Packaging content Cables included SATA User guide Yes Processor Compatible processor series Intel? Xeon? E3 Family ECC supported by processor Yes Intel Xeon series E3-1200 Lithography 22 nm Maximum internal memory supported by processor 32 GB Maximum number of PCI Express lanes 16 Memory bandwidth supported by processor (max) 25,6 GB/s Processor manufacturer Intel Processor number of cores supported 2/4 Processor socket LGA 1150 (Socket H3) Processor thermal power (max) 95 Watt Product codename Rainbow Pass Product family Single-socket server board Product series Intel S1200RP System bus rate 5 GT/s Processor special Caratteristiche Connector for Intel I/O Expansion Module 1 Integrated BMC with IPMI Yes Integrated systems available Yes Intel Advanced Management Technology Yes Intel Build Assurance Technology No Intel Clear Video Technology No Intel Dual Display Capable Technology No Intel Efficient Power Technology No Intel Fast Memory Access Yes Intel Flex Memory Access No Intel I/O Acceleration Technology Yes Intel Intelligent Power Node Manager Yes Intel Quick Resume Technology No Intel Quiet System Technology (QST) No Intel Quiet Thermal Technology No Intel Rapid Storage Technology No Intel Rapid Storage Technology enterprise Yes Intel Remote Management Module Support N Intel Server Customization Technology No Intel Server Management Software Yes Intel Trusted Execution Technology Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Anti-Theft Technology (Intel? AT) No Intel? Clear Video HD Technology (Intel? CVT HD) No Intel? High Definition Audio (Intel? HD Audio) No Intel? Matrix Storage Technology (Intel? MST) No Intel? Virtualization Technology (Intel? VT) VT-d Intelligent Platform Management Interface (IPMI) support Yes Trusted Platform Module (TPM) Yes Trusted Platform Module (TPM) version 1.2 Product dimensions Net Weight (Product kg) 1 kg Rear panel I/O ports Ethernet LAN (RJ-45) ports 2 Serial ports quantity 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 VGA (D-Sub) ports quantity 1 Storage controllers RAID levels 0/1/10/5 Supported storage drive interfaces SATA Technical details Additional information URL http://www.intel.com/content/www/us/en/motherboards/server-motherboards/server-board-s1200v3rp.html Born on date Q2'13 End of life date announce Sunday October 30 2016 Expected discontinuance date Q4'16 FireWire support No Form factor uATX Last change 63903513 Last order date Sunday April 30 2017 Last receipt attributes date Thursday August 31 2017 Launch date Q2'13 Maximum memory 32 GB Product name Intel Server Board S1200V3RPS Product type Server/Workstation Board Status Discontinued Supported RAID configuration Software RAID RST (0,1,10,5) and ESRT2 (0,1,10) USB ports quantity 4 USB version 3.2 Gen 1 (3.1 Gen 1) ^ Brand Name Intel * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
