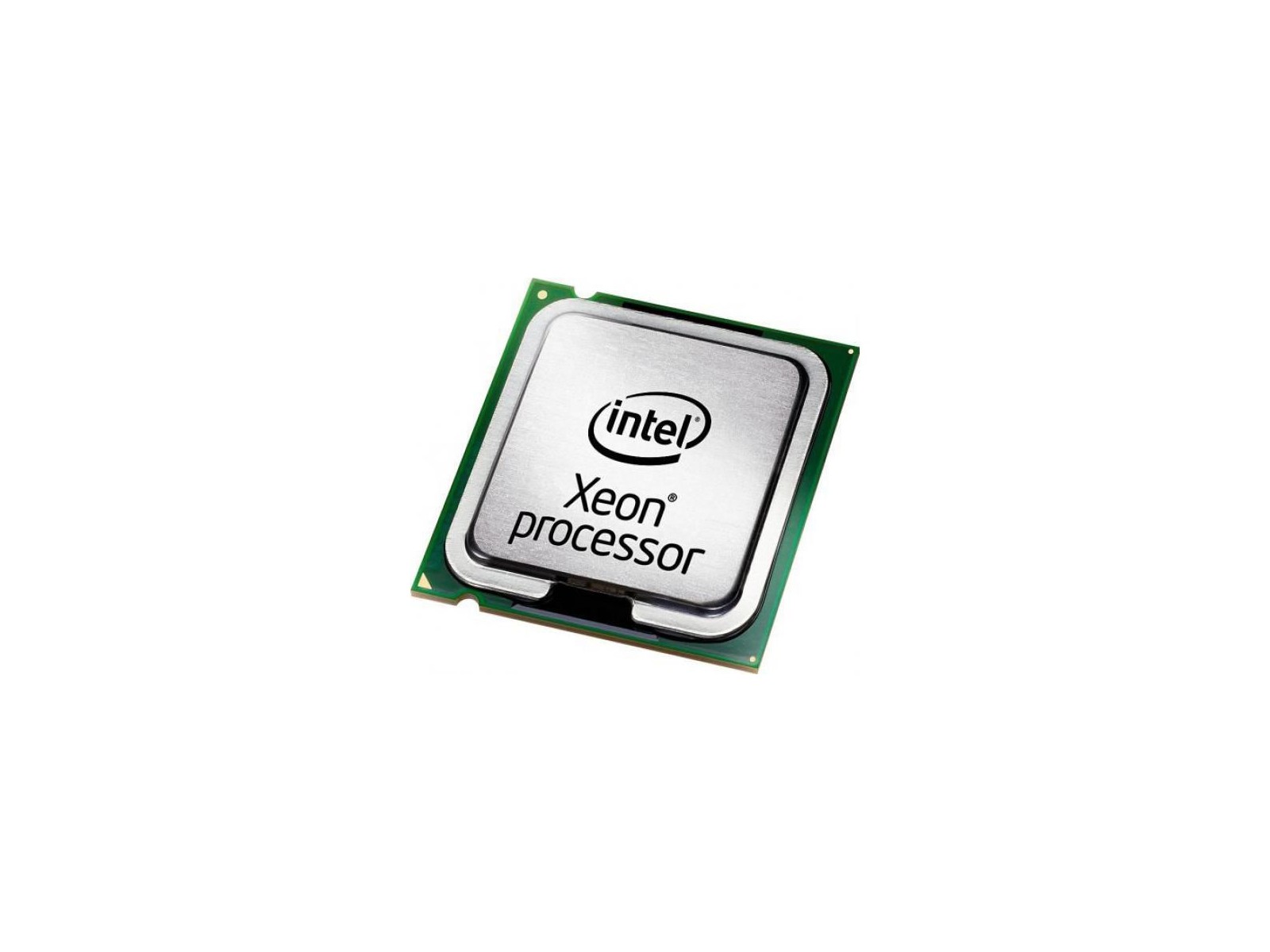

CM8063401286503-RFB Intel E5-2420v2 2.2GHz Hex Core CPU.

















Caratteristiche Bandwidth 7,2 MB/s Commodity Classification Automated Tracking System (CCATS) G077159 CPU configuration (max) 2 Embedded options available No Execute Disable Bit Yes Export Control Classification Number (ECCN) 5A992C Idle States Yes Market segment Server Maximum number of PCI Express lanes 24 PCI Express CEM revision 3.0 PCI Express configurations x16/x4/x8 PCI Express slots version 3.0 Physical Address Extension (PAE) 46 bit Physical Address Extension (PAE) Yes Scalability 2S Supported instruction sets AVX Thermal Monitoring Technologies Yes Graphics On-board graphics card No Legal Information UNSPSC Code (Icecat) 43201503 Logistics data Harmonized System (HS) code 8542310001 Memory ECC Yes Maximum internal memory supported by processor 384 GB Memory channels Triple-channel Memory clock speeds supported by processor 1066/1333/1600/800 MHz Memory types supported by processor DDR3-SDRAM Operational conditions Tcase 76 ?C Other Caratteristiche Cache memory 15 MB Intel? Virtualization Technology (Intel? VT) VT-d/VT-x Maximum internal memory 384 GB Maximum internal memory 393216 MB Package dimensions Depth (package,cm) 14 cm Gross Weight (Package kg) 0,13 kg Height (package,cm) 11,7 cm Width (package,cm) 4,4 cm Processor Box No Bus type QPI Component for Server/workstation Cooler included No L3 cache speed 2,2 GHz Memory bandwidth supported by processor (max) 38,4 GB/s Number of QPI links 1 Processor ARK ID 75784 Processor base frequency 2,2 GHz Processor boost frequency 2,7 GHz Processor cache 15 MB Processor cache type Smart Cache Processor code SR1AJ Processor codename Ivy Bridge EN Processor cores 6 Processor family Intel? Xeon? E5 V2 Family Processor lithography 22 nm Processor manufacturer Intel Processor model E5-2420V2 Processor operating modes 64-bit Processor series Intel Xeon E5-2400 v2 Processor socket LGA 1356 (Socket B2) Processor threads 12 Stepping S1 System bus rate 7,2 GT/s Thermal Design Power (TDP) 80 Watt VID Voltage Range 0.65 - 1.3 V Processor special Caratteristiche Conflict-Free processor No Enhanced Intel SpeedStep Technology Yes Intel 64 Yes Intel Demand Based Switching Yes Intel Enhanced Halt State Yes Intel Flex Memory Access No Intel Identity Protection Technology version 0.00 Intel Secure Key Technology version 1.00 Intel Trusted Execution Technology Yes Intel TSX-NI No Intel TSX-NI version 0.00 Intel Virtualization Technology (VT-x) Yes Intel Virtualization Technology for Directed I/O (VT-d) Yes Intel VT-x with Extended Page Tables (EPT) Yes Intel? AES New Instructions (Intel? AES-NI) Yes Intel? Hyper Threading Technology (Intel? HT Technology) Yes Intel? Identity Protection Technology (Intel? IPT) No Intel? OS Guard Yes Intel? Secure Key Yes Intel? Smart Cache Yes Intel? Transactional Synchronization Extensions No Intel? Turbo Boost Technology 2.0 Intel? Turbo Boost Technology 2.0 frequency 2,7 GHz Product dimensions Net Weight (Product kg) 0,1 kg Technical details Born on date Q1'14 Bus bandwidth 7,2 Bus speed 7.2 GT/s Bus type units GT/s Last change 63903513 Launch date Q1'14 Maximum memory 384 GB Processor brand name Intel Xeon v2 Processor cache 15360 KB Processor core voltage 0.65-1.30 V Product family Intel Xeon Processor E5 v2 Family Product name Intel Xeon E5-2420 v2 (15M Cache 2.20 GHz) Product type Processor Status Launched Supported memory types DDR3-SDRAM ^ Brand Name Intel * 1 Anno(i) Weight & dimensions Processor package size 45mm x 42.5mm mm Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria CPU
