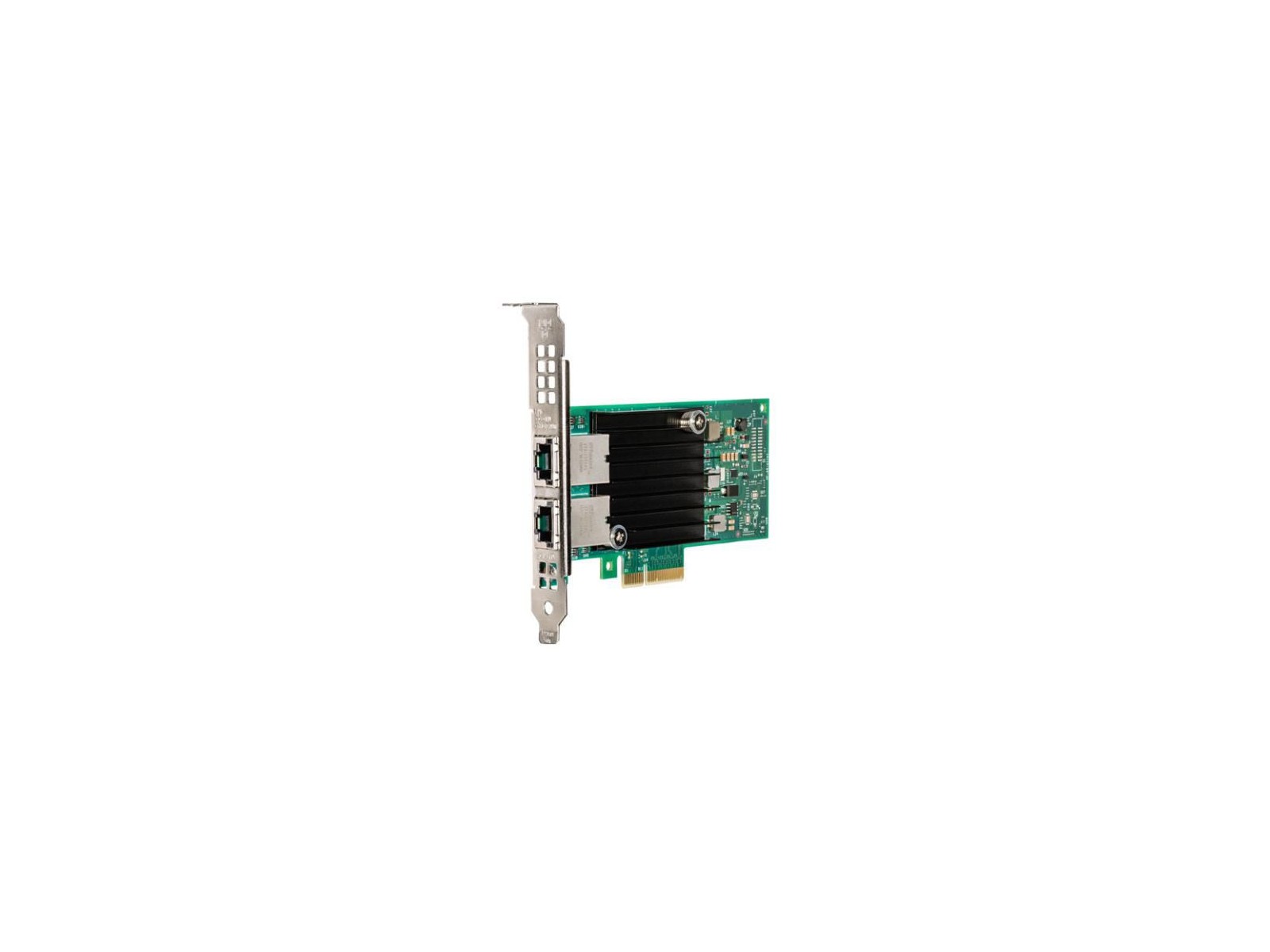

X550T2 Intel Ethernet Converged Network Adapter X550-T2









Scheda di rete convergente Ethernet X550-T2La tecnologia Intel? Data Direct I/O ? una tecnologia di piattaforma che migliora l'efficienza di elaborazione dei dati I/O per la distribuzione e il consumo di dati dai dispositivi I/O. Con Intel DDIO le schede e i controller Intel? Server comunicano direttamente con la cache del processore senza deviazioni tramite la memoria di sistema riducendo la latenza aumentando la larghezza di banda I/O del sistema e riducendo il consumo di energia.La virtualizzazione I/O Single-Root (SR-IOV) implica la condivisione nativa (diretta) di una singola risorsa I/O tra pi? macchine virtuali. SR-IOV fornisce un meccanismo tramite il quale una funzione Single Root (ad esempio una singola porta Ethernet) pu? apparire come pi? dispositivi fisici separati.La tecnologia Flexible Port Partitioning (FPP) utilizza lo standard di settore PCI SIG SR-IOV per dividere in modo efficiente il dispositivo Ethernet fisico in pi? dispositivi virtuali fornendo la qualit? del servizio assicurando che ogni processo sia assegnato a una funzione virtuale e che venga fornita una quota equa della larghezza di banda.









Design Internal Yes PCI Card form factor Half-height (low-profile) Product colour Green/Silver Legal Information EU ECCN Code N/A UNSPSC Code (Icecat) 43201404 US ECCN Code 5A991 Logistics data Harmonized System (HS) code 85176990 Network Cabling technology 10GBase-T Ethernet interface type 10 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet Ethernet LAN Yes Ethernet LAN data rates 100/1000/10000/2500/5000 Mbit/s iSCSI support Yes LAN controller Intel? X550 Maximum data transfer rate 10000 Mbit/s Maximum operating distance 100 m Networking standards IEEE 802.1as/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ad VLAN tagging Yes Operational conditions Operating temperature (T-T) 0 - 55 ?C Storage relative humidity (H-H) 0 - 90 % Storage temperature (T-T) -40 - 70 ?C Other Caratteristiche Bracket height Low-Profile (LP) / Full-Height (FH) Bracket height Low Profile and Full Height Cable type RJ45 Category 6 up to 55m; Category 6A up to 100m Cabling type RJ45 Category 6 up to 55m; Category 6A up to 100m Commodity Classification Automated Tracking System (CCATS) G135872 Conflict-Free Yes Controller type Intel? Ethernet Controller X550 Data transfer rate 8 GT/s Desktop Management Interface (DMI) version 2.0 Ethernet adapter ARK ID 88209 Export Control Classification Number (ECCN) 5A992C Fiber Channel over Ethernet Yes Halogen-free No Harmonized System (HS) code 85176990 Intel Data Direct I/O Technology Yes Intel Flexible Port Partitioning Yes Intel Virtual Machine Device Queues (VMDq) Yes Intel Virtualization Technology for Connectivity (VT-c) Yes Intelligent Offloads Yes Interface type PCIe v3.0 (8.0 GT/s) iWARP/RDMA No Last change 64826838 Launch date Q1'16 Low halogen options available No Market segment Server Network interface card cable medium Copper Network interface card type Server Number of VLANs 4096 On-chip QoS and Traffic Management Yes PCI-SIG* SR-IOV Capable Yes Processor family 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE) Product brief URL http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html Product family Intel 10 Gigabit server adapter Product series 500 Series Network Adapters (up to 10GbE) Product type Network Interface Card Speed & slot width 8.0 GT/s x4 Lane Status Launched Storage Over Ethernet iSCSI FCoE NFS Package dimensions Depth (package,cm) 23,1 cm Gross Weight (Package kg) 0,195 kg Height (package,cm) 3,1 cm Width (package,cm) 14,3 cm Ports & interfaces Connectivity technology Wired Ethernet LAN (RJ-45) ports 2 Host interface PCI Express Interface Ethernet PCI Card form factor Half-height (low-profile) PCI version 3.0 Product dimensions Net Weight (Product kg) 0,19 kg System requirements Compatible operating systems https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html Linux operating systems supported Red Hat Enterprise Linux WS 5.0/Red Hat Enterprise Linux WS 6.0/SUSE Linux Enterprise Desktop 10/SUSE Linux Enterprise Desktop 11 Server operating systems supported Windows Server 2003/Windows Server 2008 R2/Windows Server 2008 R2 x64/Windows Server 2008 x64/Windows Server 2012 R2/Windows Server 2012 R2 x64 Windows operating systems supported Windows 7 Enterprise/Windows 7 Enterprise x64/Windows 7 Home Basic/Windows 7 Home Basic x64/Windows 7 Home Premium/Windows 7 Home Premium x64/Windows 7 Professional/Windows 7 Professional x64/Windows 7 Starter/Windows 7 Starter x64/Windows 7 Ultimate/Windows 7 Ultimate x64/Windows 8/Windows 8 Enterprise/Windows 8 Enterprise x64/Windows 8 Pro/Windows 8 Pro x64/Windows 8 x64 Technical details Harmonized System (HS) code 8517620090 ^ Brand Name Intel * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede di rete
