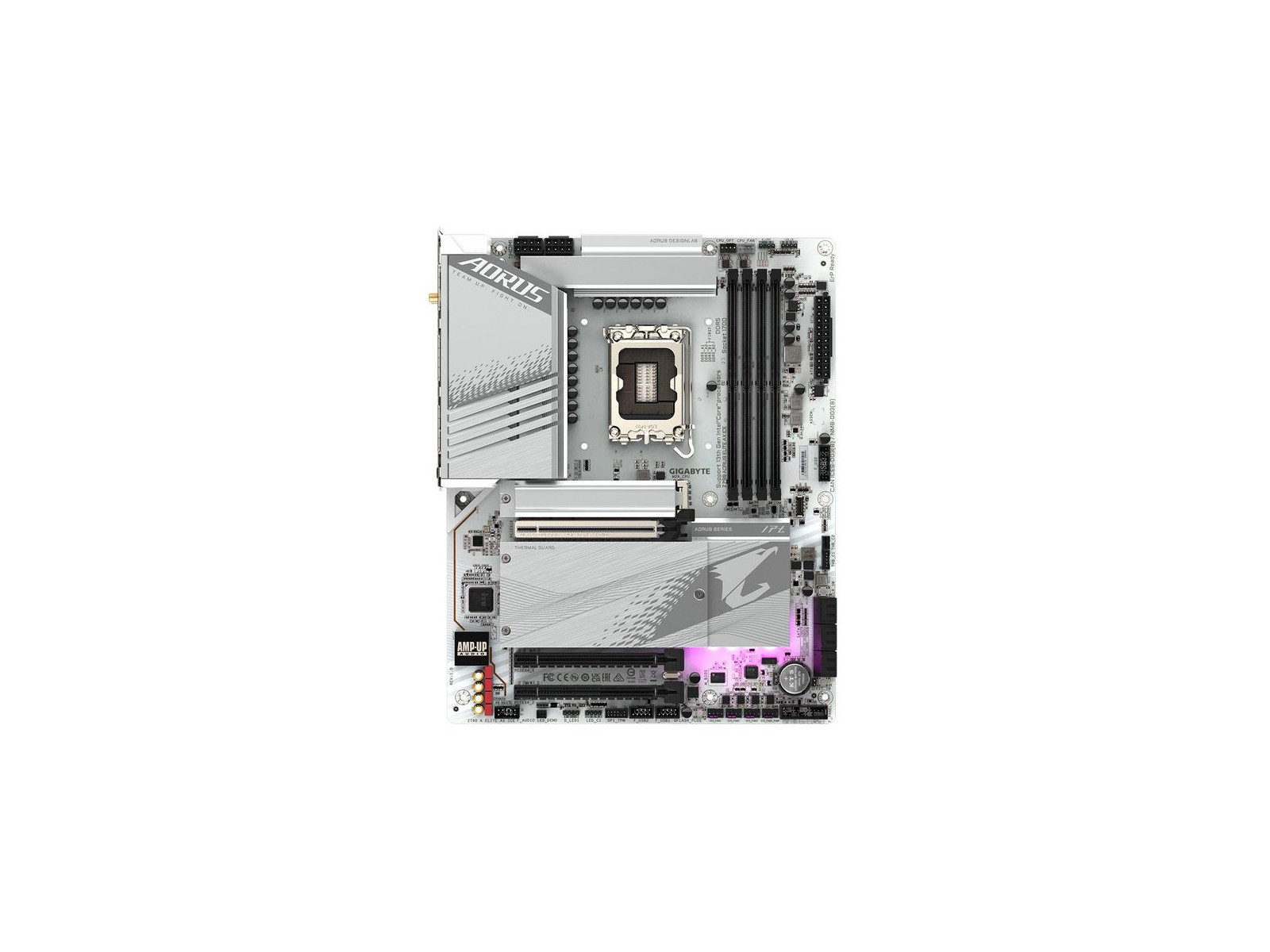

Z790 A ELITE AX ICE Gigabyte Z790 Aorus Elite Ax Ice Motherboard Intel Z790 Express Lga 1700 Atx

















Battery Battery Type UN3091 - Lithium METAL inside equiment Lithium Weight (g) 0,064 g BIOS ACPI version 5.0 BIOS memory size 256 Mbit BIOS type UEFI AMI Clear CMOS button Yes Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7 Expansion slots Number of M.2 (M) slots 4 PCI Express x16 slots 3 Caratteristiche Audio output channels 7.1 canali Component for PC Motherboard chipset Intel Z790 Express Motherboard chipset family Intel Motherboard form factor ATX PC health monitoring Fan/Temperature/Voltage/Water cooling Product colour White Windows operating systems supported Windows 10 x64/Windows 11 x64 Graphics HDCP Yes Maximum resolution 4096 x 2304 Pixels Parallel processing technology support Not supported Internal I/O 12V power connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes EPS power connector (8-pin) Yes Front panel audio connector Yes Front panel connector Yes Number of SATA III connectors 6 RGB LED pin header Yes Thunderbolt headers 2 TPM connector Yes USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Legal Information UNSPSC Code (Icecat) 43201513 Memory ECC Yes Maximum internal memory 192 GB Memory channels Dual-channel Memory slots type DIMM Non-ECC Yes Number of memory slots 4 Supported memory clock speed (max) 7600 MHz Supported memory clock speeds 4000/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz Supported memory types DDR5-SDRAM Unbuffered memory Yes Network Bluetooth Yes Bluetooth version 5.3 Ethernet interface type 2.5 Gigabit Ethernet Ethernet LAN Yes Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi Yes Wi-Fi standards 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) Package dimensions Gross Weight (Package kg) 1,3 kg Packaging content Bundled software Norton Internet Security Cables included SATA Processor Compatible processor series Intel? Celeron?/Intel? Core? i3/Intel? Core? i5/Intel? Core? i7/Intel? Core? i9/Intel? Pentium? Gold Processor manufacturer Intel Processor socket LGA 1700 Supported processor sockets LGA 1700 Product dimensions Net Weight (Product kg) 1 kg Product Depth 24,4 cm Product Width 30,5 cm Rear panel I/O ports DisplayPort version 1.2 DisplayPorts quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.0 Headphone outputs 2 Microphone in Yes S/PDIF out port Yes USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2 USB 3.2 Gen 2x2 Type-C ports quantity 1 USB connector type USB Type-A/USB Type-C WiFi-AP antenna jack 2 Storage controllers Number of storage drives supported 10 RAID levels 0/1/10/5 RAID support Yes Supported storage drive interfaces M.2/PCI Express 4.0/SATA III Supported storage drive types HDD & SSD ^ Brand Name Gigabyte * 1 Anno(i) Categorie Categoria principale Parti per Server Computer e Stampanti Sottocategoria Server & Computer Sottocategoria Componenti di sistema Sottocategoria Schede madre
